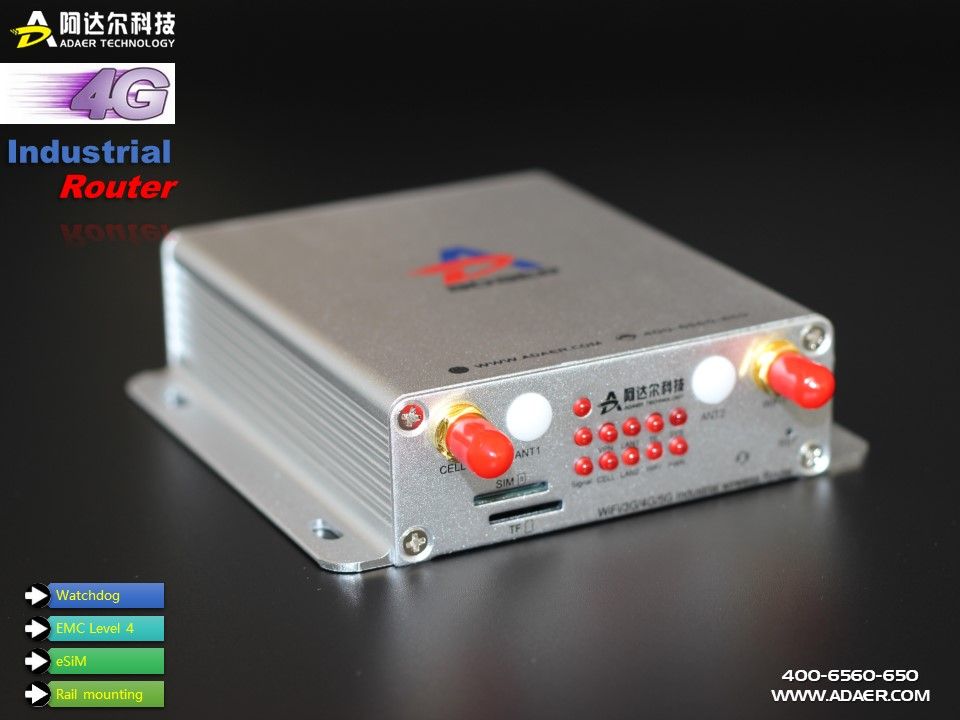

ADR-R9182-4G Industrial Router

←

→

Functional characteristics

ADR-R9182-4G Industrial Router

Category	Project	Description	Remark
Hardware Platform	CPU	MIPS SoC 580MHz
	DDR	128MB(1Gbit)
	FLASH	16MB(128Mbit)
Physical Interface	Ethernet interface	2x10/100Mbps RJ45，2Lan or 1Wan/1Lan
	Serial interface	RS232 x1 or RS485 x1 ESD ：Contact 8KV, air 15KV Pluggable 3.5mm pitch industrial terminal block form	Optional
	Console	RS232 x 1，Pluggable 3.5mm pitch industrial terminal block form
	WiFi	2.4G(802.11 b/g/n，Max 300M)	Optional
	Voice interface	Standard 3.5 four-segment audio jack	Optional
	Reset	Pinhole reset button
	SIM Card	Micro SiMx1 self-elastic self-locking or SMD eSiMx1（Optional）
	Storage	Support TF card, up to 32GB	Optional
	Antenna interface	Standard SMA female (outer screw bore), impedance 50 ohms
Mechanical Properties	Installation size	Shell：103x104x28mm，PCB：100x76x2mm
	Installation method	Desktop, wall, rail（Optional）
	Shell material	Aluminum alloy
	Protection level	IP50
	Cooling method	Fanless heat
Power	Power input	DC 9-36V
	Power interface	Pluggable industrial terminal block connection
	Power protection	Support overvoltage, overcurrent, reverse protection
Environment	Humidity	5 ~ 95% （No condensation）
	Storage	-40 ~ 85℃
	Operating	-30 ~ 70℃
Other	Power consumption	Typical value during communication：160mA@12V； Typical value when idle：120mA@12V
	Pilot lamp	PWR, SYS, TF, WIFI, GPS,LAN,WAN,VPN,CELL,Signal light

Function and interface		Product model
Function and interface		ADR-R9182HA	ADR-R9182HB	ADR-R9182HC	ADR-R9182HD	ADR-R9182HE	ADR-R9182HF
Hardware interface	SiM1	√	√	√	√	√	√
	WAN	\	\	\	√	√	√
	LAN1	√	√	√	\	\	\
	LAN2	√	√	√	√	√	√
	RS232	\	√	\	\	√	\
	RS485	\	\	√	\	\	√
Standard function	Switching	√	√	√	√	√	√
	APN/VPDN	√	√	√	√	√	√
	ICMP detection	√	√	√	√	√	√
	SPI firewall	√	√	√	√	√	√
	Port Mapping	√	√	√	√	√	√
	IP filtering	√	√	√	√	√	√
	MAC filtering	√	√	√	√	√	√
	Port filtering	√	√	√	√	√	√
	QoS	√	√	√	√	√	√
	Traffic Statistics	√	√	√	√	√	√
	DDNS	√	√	√	√	√	√
	Cloud platform	√	√	√	√	√	√
	Timed restart	√	√	√	√	√	√
Optional function	DTU	/	-D		/	-D
	VPN	-V
	GPS/BD	-G
	WiFi	-W
	Remote wakeup	-M
	Emergency voice communication	-T
	Line backup	-B
Customizable features	FTP	-F
	GPIO	-O
	SNMP	-S
	WiFi+	-W+
	Local authentication	-R
	TF	-U
Examples	ADR-R9182HB-DVW：Standard function+RS232+DTU+VPN+WiFi
